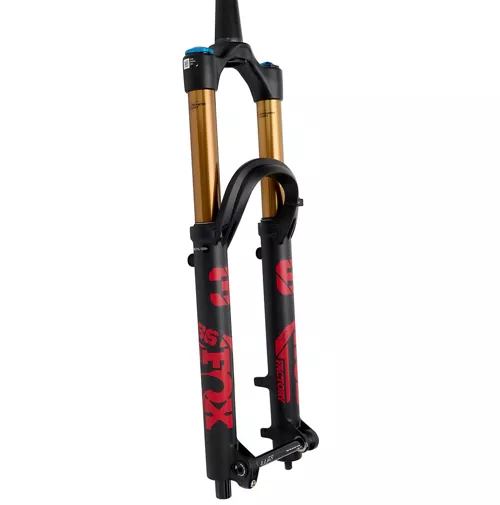

Fox Suspension 36 Float Factory Grip2 Boost Fork 2022

Fox Suspension 36 Float Factory Grip2 Boost Fork (2022)

Designed for all-mountain and enduro racing, this Fork from Fox Suspension combines quality with lightweight stiffness for unrivalled durability. It features a GRIP damper with dual variable valve control and a Float EVOL air spring so you can adjust pressure and speed compression with ease. This fork also benefits from a Kashima coating for enhanced durability and long-lasting performance when tackling tough trails.

Factory Series: “Factory” says it all – feature-packed and designed to exceed the demands of Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.

Features:

• Steerer Tube Material: Aluminium
• Crown Material: Aluminium
• Stanchion Tube Material: Aluminium
• Lower Tube Material: Magnesium
• Upper Leg Finish: Genuine Kashima Coat
• Use: All Mountain, Enduro
• Air Spring: Float EVOL
• Damper: GRIP2 with dual VVC (Variable Valve Control)
• Adjustment: High and low-speed compression, high and low-speed rebound, air pressure adjusts
• Steerer: 1 1/8-1.5″ tapered
• Axle Type: 15 x 110mm Boost
• Brake Mount: Disc PM 7″ (180mm direct mount)
• Stanchion Tube Diameter: 36mm
• Offset: 44mm
• Remote Operated: No
• Lever Operated: Yes
• Lockout: No
• Wheel Size: Multiple options available
• Floating Axle Included: Yes
• Mudguard mounts: Optional FOX 36/38 Mud Guard with sturdy 4-point direct-mount attachment (sold separately)

Technologies:

• Adjustments: High-speed compression (with VVC) 8 clicks. Low-speed compression 16 clicks. High-speed rebound (with VVC) 8 clicks. Low-speed rebound 16 clicks
• Floating Axle:  Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality. The updated 36 and 38 come equipped with a new quick-release lever operated patent-pending floating axle system, combining the benefit of a floating axle with the ease of a tool-free quick-release. With this system, spacing is locked in via a floating sleeve, allowing repeated front wheel removal and reinstallation while maintaining perfect fork alignment. Floating sleeve positioning comes preset from the factory so if you are unsure of how to operate the floating axle system or simply don’t want to bother with it, you can just install the front wheel and get on with your ride
• Lower Leg Bypass Channels: As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Fox Suspension’s lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping. Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel
• Bleeders: Fox Suspension’s lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness
• Lower Leg Arch:  The arch design of the updated 36, 38, and 40 models are designed to pair perfectly with modern Enduro and Downhill bikes. Head tube profiles have grown larger and larger, and fork offsets shorter and shorter. Fox Suspension’s updated arch shape takes this need into account by jutting forward to provide ample headtube clearance at full compression. State-of-the-art computer modeling techniques helped us to create an organic lower leg shape that optimizes stiffness with the absolute minimal amount of material.
